1. HOME
  2. Product Groups
  3. Advanced Materials
  4. KUREHA Microsphere

Thermo expandable microcapsulesKUREHA Microsphere

KUREHA Microsphere　H1100-S

  • H1100-S has unique expansion characteristics.
  • Expansion start temperature (Tstart) drops if exposed to a pre-heating or heat treatment. This allows for maximum expansion performance in process.
  • Recommended pre-heat condition is 2 to 5 minutes between 150-170℃.
  • If used in molding/extrusion the cylinder should provide sufficient temperature.
  • In order to optimize H1100-S, it is recommended to process after heat treatment for maximum performance.
Average particle size before expansion
（μm）		 Average particle size after expansion
（μm）		 Expansion ratio Expansion start temperature (Tstart)
（℃）		 Maximum expansion temperature (Tmax)
（℃）
Before heat treatment 40-55 - - 170-225 -
After heat treatment 145-210 45-70 145-160 175-195

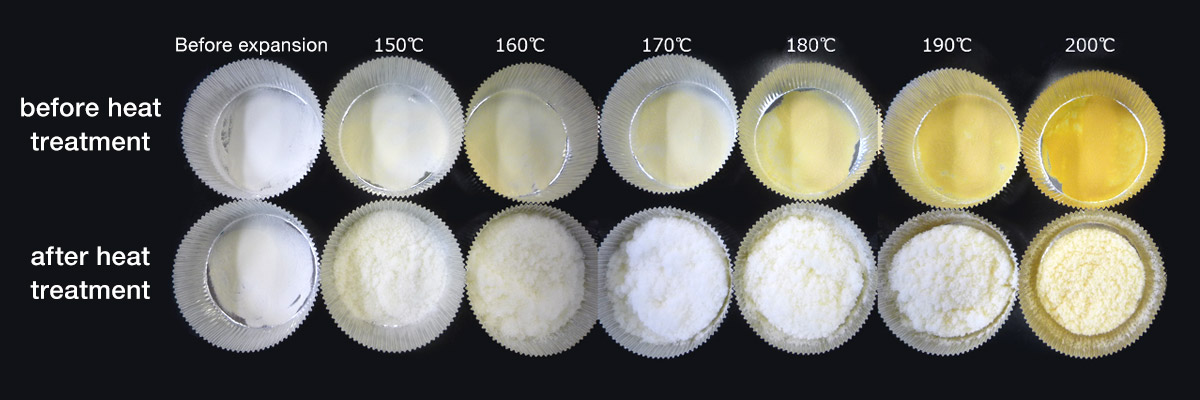

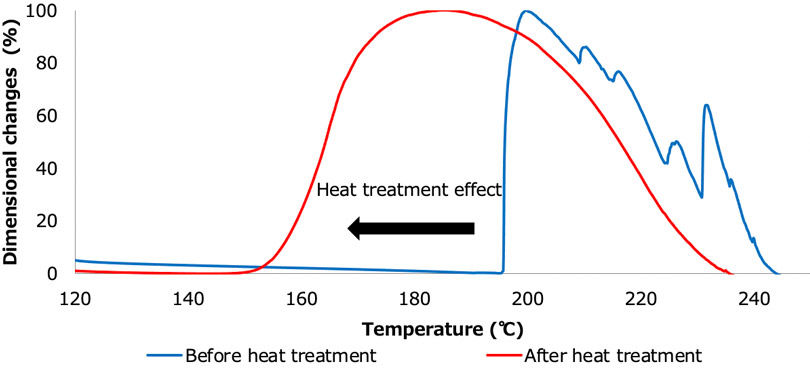

Heat treatment effect for H1100-S (pre-heating condition : 5 min at 150℃)

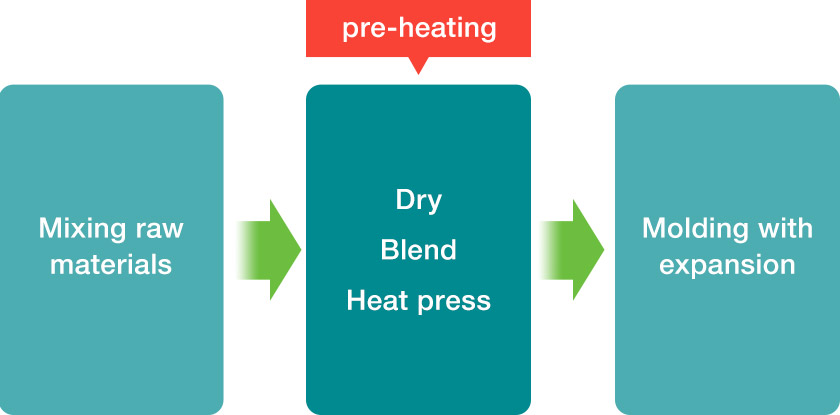

Process example of H1100-S

Contact for Inquiries

Inquiry by form

Advanced Materials TOP
